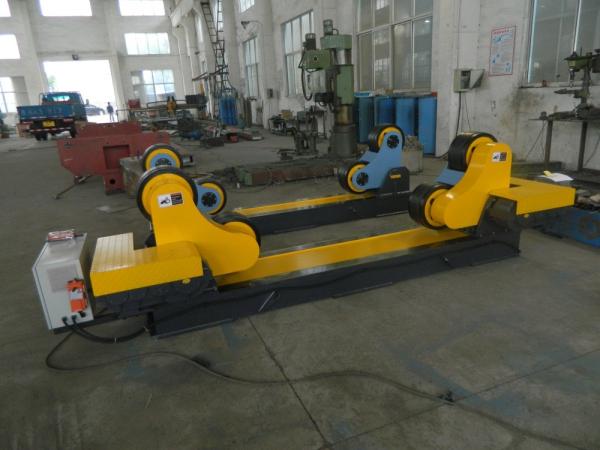

80 Ton Conventional Welding Rotator

Product Categories

ZHANGJIAGANG FLAME MACHINERY CO.,LTD.

Contact Now

Name: 80 Ton Conventional Welding Rotator
Brand: weldsuccess
Price: 1 USD

Brand Name : weldsuccess

Model Number : HGZ series

Certification : CE, ISO9000

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 20sets/month

Delivery Time : 25days

Packaging Details : Mainframe naked in container and electric control part packed in plywood case then in container;

Price Terms : FOB (Shanghai) or CIF (named port)

Name : welding rotators

Capacity : 80ton

Power(w) : 1.5kw-5.5kw

Suit diameter mm : 2000mm-4500mm

Linear speed m/h : 6--60m/h

Application : turning roll,tank

Contact Now

Turning Roll 80 Ton Conventional Welding Rotator For Power Station Construction

Quick Details

Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
Roller distance is self-aligned and roller surrounding angle among 45°～110°;

Applications

It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction,

metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

welding rotators Specifications:

Model		HGZ80
Max loading T		80
Suit diameter mm	Min	2000
	Max	4500
PU Roller mm	Dia	500
	Width	200
Linear speed m/h		6--60
Speed Control		VFD
Motor power kW		2*2.2
Above are our standard models and parameters, and it can be designed and manufactured on request.

Main features

The standard models of our roller beds or welding rotators have the following features:

Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
Roller distance is self-aligned and roller surrounding angle among 45°～110°;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
Lifting lug on the base of roller bed;
Standard color:

Optional features:

Supply range

Driving welding rotator 1set
Idle welding rotator 1set
Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
Technical documents (with manual book, conformity certificate, packing list, etc) 1set
