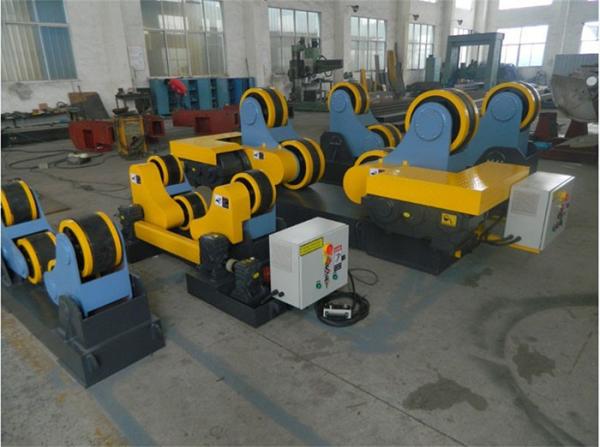

France Schneider Inverter Welding Tank Rotators 80T 300-3000mm/Min

Product Categories

ZHANGJIAGANG FLAME MACHINERY CO.,LTD.

Contact Now

Name: France Schneider Inverter Welding Tank Rotators 80T 3003000mmMin
Brand: weldsuccess
Price: 1 USD

Place of Origin : China

Brand Name : weldsuccess

Certification : CE, ISO9000

Model Number : GZD series

MOQ : 1set

Price : Negotiable

Packaging Details : Mainframe naked in container and electric control part packed in plywood case then in container;

Delivery Time : 25days

Payment Terms : TT/LC

Supply Ability : 20sets/month

Price terms : FOB (Shanghai) or CIF (named port)

Name : turning Rolls /welding Rotator

Capacity : 80T

Suit diameter mm : 2000mm-4500mm

Boogie travel speed mm/min : 300-3000mm/min

Usage : Welding Rotator,Pipeline Rollers Pipe Rollers

Application : Medicine Processing,tank,wind tower fabrication etc

Contact Now

Adjustable Welding Rollers / Metallic Rollers France Schneider Inverter

1. Quick Detail

Bolt adjustable pipe welding rotator with travel boogie;
Broadly used in pipe or vessel fit-up processes;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;

2. Main Parameters

Model		HGK80Y
Max loading T		80
Suit diameter mm	Min	2000
	Max	4500
PU Roller mm	Dia	500
	Width	400
Linear speed m/h		6--60
Speed Control		VFD
Boogie travel speed mm/min		300-3000
Inner rail span mm		2000
Roller motor power kW		2*2.2
Boogie motor power kW		2*1.1
Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our pipe welding rotator or roller beds have the following features:

Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking
worm gear reducers;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
painting;
Fine machining to upper surface of base;
Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
Lifting lug on the base of roller bed;
Standard color:

Optional features:

4. Supply range

Driving turning roll 1set
Idle turning roll 1set
Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
Technical documents (with manual book, conformity certificate, packing list, etc) 1set
